Product description

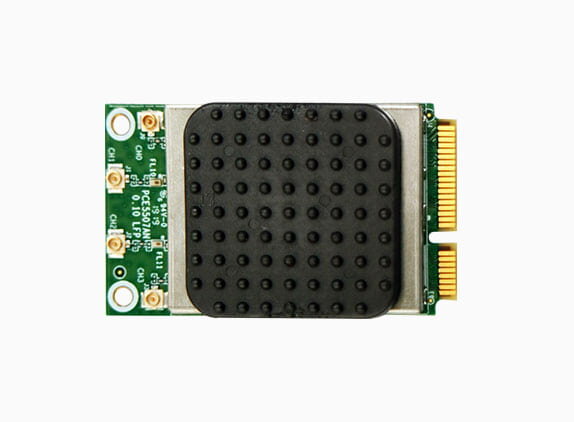

SparkLAN WPEQ-450AC is a highly integrated Wireless LAN (WLAN), WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE module that supports 4-stream 802.11ac with multi-user MIMO (Multiple-Input, Multiple-Output) wireless LAN (WLAN). It integrates 4×4 (4T4R) WLAN MAC, baseband, and single band RF in a single chip Mini-PCIe module. WPEQ-450AC provides a cost effective solution for M2M (machine to machine) connectivity via Mini-PCIe, it can be easily integrated into the most common operation system (Linux).
Thanks to Wave2 11ac support, the WPEQ-450AC helps premium WiFi routers, gateways, set-top-boxes and range extenders to connect more devices and more demanding applications in the connected environment. It supports 80+80MHz channels to double capacity at close range.
Key features
- Chipset: Qualcomm Atheros QCA9984
- Antenna: 4 x IPEX connectors, 4T4R
- Form Factor: Mini PCIe
- Interface: PCIe
- OS-Support: Linux
