Defining HMI: More Than Just a Screen
A Human-Machine Interface (HMI) encompasses all the hardware and software that allow an operator or end user to communicate with a technical system. In industrial settings this typically means operator panels, touch displays and status indicators mounted on machinery. In consumer electronics the range extends from smartphone screens to voice assistants embedded in household appliances.

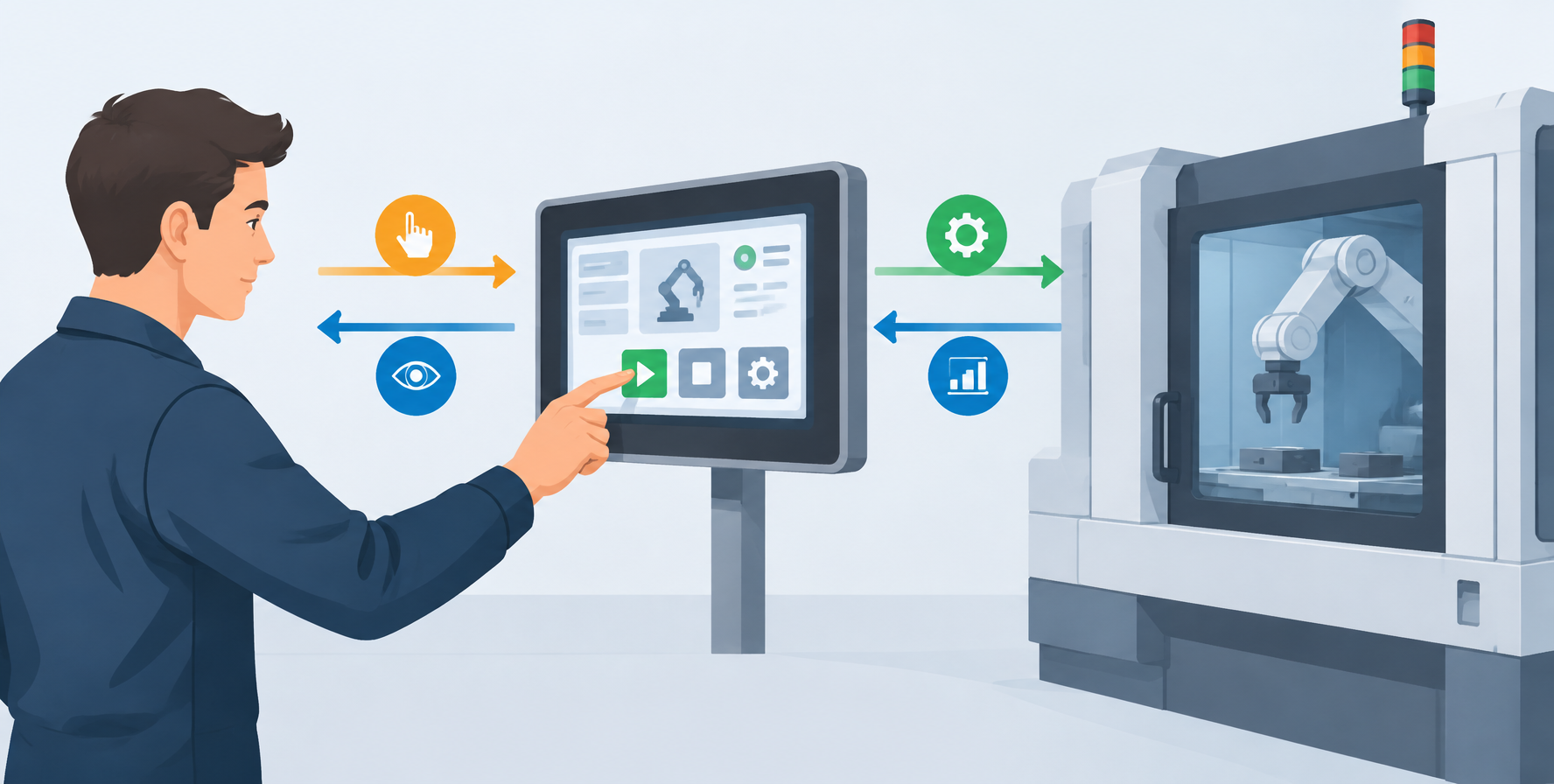

Every HMI performs two fundamental functions: it captures user input and it conveys system status, feedback or control responses back to the user. The design quality of an HMI directly determines how safely, efficiently and intuitively a device or installation can be operated.
Core Components of an HMI System
- Input devices: Touchscreens, keypads, rotary encoders, joysticks, microphones, cameras
- Output devices: Displays, LEDs, buzzers, speakers, haptic actuators
- Processor or microcontroller: Handles input processing, executes application logic and drives outputs
- Software and firmware: GUI frameworks, device drivers, communication stacks
- Communication interfaces: UART, SPI, I²C, USB, CAN, Ethernet, and wireless protocols such as BLE and Wi-Fi
Real-World Examples Across Electronics Markets
HMI solutions appear in virtually every market segment:
- Industrial automation: Operator panels on CNC machines, PLC visualisation systems and SCADA terminals let production staff monitor and control complex processes in real time.
- Medical technology: Infusion pumps, ventilators and diagnostic equipment rely on HMIs where an input error can directly affect patient safety – reliability and certifiability are paramount.
- Automotive: Infotainment systems, digital instrument clusters and head-up displays connect driver and vehicle. Modern cars integrate touch, voice and gesture recognition into a single coherent HMI concept.
- Smart home and consumer electronics: Thermostats, white goods and wearables use compact HMI solutions built around capacitive touch controllers and small-format displays.
- Embedded and IoT: Edge devices in building automation or energy management display local readings while simultaneously accepting configuration commands from a cloud back-end.
The Semiconductor Building Blocks of Modern HMIs
HMI performance is fundamentally shaped by the semiconductors chosen during design-in. High-integration application processors with GPU support enable smooth, animated graphical interfaces. Dedicated display controllers and touch ICs handle signal conditioning, while low-power microcontrollers manage simple HMI tasks in battery-operated products. More demanding applications call for SoCs with integrated DSPs or NPUs capable of running on-device speech recognition or image processing.
Realistic Future Applications
HMI technology is evolving along several well-defined trajectories:
- Multimodal interaction: Next-generation systems will combine touch, voice, gesture and gaze tracking into a seamless, context-aware interface that adapts to the user's situation.
- AI-driven personalisation: Embedded AI models will learn user preferences and dynamically adjust interfaces, alert thresholds and workflows without cloud dependency.
- Augmented reality (AR): In Industry 4.0 environments, AR headsets will overlay machine data directly into a technician's field of view, making the physical HMI panel effectively invisible.
- Next-generation haptics: Piezoelectric actuators and ultrasonic mid-air haptics will deliver tactile feedback without physical contact, opening new possibilities for hygienic or gloved-hand operation.
- Functional safety integration: In safety-critical applications governed by standards such as automotive ISO 26262 or industrial IEC 61508, HMI semiconductors increasingly incorporate on-chip safety mechanisms – ECC memory, hardware watchdogs and self-test routines – to simplify certification.
Frequently Asked Questions About HMI
What is the difference between an HMI and a GUI?
A GUI (Graphical User Interface) is the visual software layer rendered on a screen. An HMI is the broader concept covering all hardware and software components involved in human-machine interaction – including buttons, sensors, actuators and communication interfaces. Every GUI can be part of an HMI, but not every HMI includes a GUI.
Which processors are suitable for HMI applications?
The right choice depends on display size, graphics complexity, real-time requirements and power budget. Simple segment displays can be driven by microcontrollers with integrated peripherals. Complex animated touch interfaces require application processors with dedicated GPU support. Safety-critical environments often call for dual-core lockstep architectures.
What does functional safety mean in the context of HMI?
Functional safety ensures that an HMI transitions to a defined safe state in the event of a fault. Applicable standards include IEC 62061 and ISO 13849 for machinery, and ISO 26262 for automotive. Semiconductors with built-in safety mechanisms such as ECC, hardware watchdogs and self-test routines simplify the path to certification.
How does an industrial HMI differ from a consumer HMI?
Industrial HMIs are designed for long-term component availability, mechanical robustness, EMC immunity and certifiability across wide temperature ranges. Consumer HMIs prioritise design aesthetics, cost optimisation and short time-to-market. The underlying semiconductor selection reflects these different priorities in quality grade and product lifecycle.
What role does connectivity play in modern HMI design?
Modern HMIs rarely operate in isolation. Via BLE, Wi-Fi, Ethernet or industrial fieldbus protocols they transmit operational data to higher-level systems and receive configuration updates from the cloud. Connectivity enables remote monitoring, over-the-air firmware updates and seamless integration into IIoT architectures.
