Product description

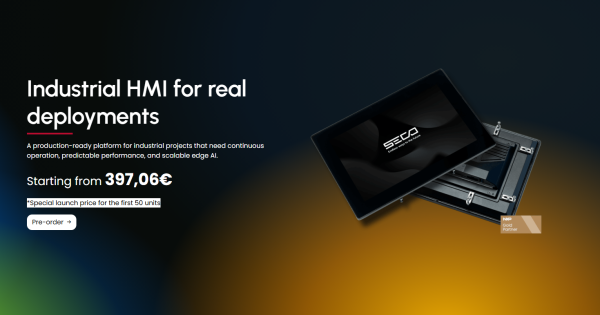

The Modular Vision 10.1 MX95 is an industrial 10.1-inch touch panel HMI from Seco with the manufacturer part number SF-E88-MDV-1111-1000-C0, built on the NXP i.MX95 applications processor with 8 GB RAM and 64 GB eMMC storage and Clea OS pre-installed.
Modular Vision 10.1 MX95 Overview
The all-in-one panel combines a 10.1-inch projected-capacitive touch display with a resolution of 1280 x 800 pixels, at least 400 cd/m² brightness and a backlight lifetime of at least 30,000 hours, in a housing measuring 270.1 x 187.1 x 51.7 mm. The front is IP66-rated against dust and splashing water and designed for panel-mount installation.
Configuration & Features
- NXP i.MX95 applications processor with six Arm Cortex-A55 cores (1.8 GHz) plus one Cortex-M33 and one Cortex-M7 core for real-time tasks
- Arm Mali-G310 GPU for 2D/3D graphics and an integrated NPU delivering up to 2.0 TOPS for edge AI acceleration
- 8 GB LPDDR5 memory and 64 GB eMMC flash storage as specified by the manufacturer for this variant
- Interfaces: Gigabit Ethernet, USB Type A, USB Type C, RS232, RS485, CAN, digital I/O, and speaker output
- Operating temperature range of 0 to 60 °C and a wide DC input voltage range for industrial power systems
- Clea OS (Linux Yocto) pre-installed with built-in security, monitoring, and update mechanisms
Typical Applications
The Modular Vision 10.1 MX95 is suited for industrial control and monitoring tasks such as plant monitoring, quality inspection, and edge AI-based machine vision. Additional touch displays for HMI applications are available under Touch Displays, and industrial solution approaches under Industrial Panels, Tablets & HMI.
Note for Procurement
The Modular Vision 10.1 MX95 has only recently moved into official distribution, and a user manual is not yet available according to the manufacturer. The SF-E88-MDV-1111-1000-C0 variant ships without a power supply.
For availability, sample requests, and project pricing, contact our sales team.
