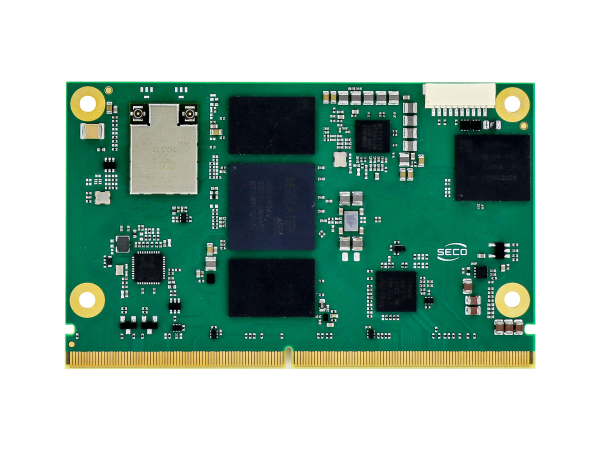

SOM-SMARC-Genio510 SMARC Module – Seco RE58-4AB2-1611-E3

The SOM-SMARC-Genio510 is a SMARC Rel. 2.1.1 system-on-module from Seco, manufacturer part number RE58-4AB2-1611-E3, built around the MediaTek Genio 510 (2x Arm Cortex-A78, 4x Arm Cortex-A55), 4GB of LPDDR4X RAM and 16GB of eMMC flash storage.

SOM-SMARC-Genio510 overview

The module belongs to the E58 product family and follows the SGeT SMARC Rel. 2.1.1 standard. The MediaTek Genio 510 (MT8370) combines Cortex-A78 and Cortex-A55 cores with an on-chip AI accelerator (Cadence Tensilica VP6 with MediaTek APU3.0) for power-efficient edge AI workloads.

Configuration & features

• CPU: MediaTek Genio 510 with 2x Arm Cortex-A78 @ 2.2 GHz and 4x Arm Cortex-A55 @ 2.0 GHz
• Graphics: Mali-G57 MC2 GPU; video output via HDMI, DisplayPort and dual LVDS
• Memory: 4GB soldered-down LPDDR4X RAM and 16GB eMMC flash storage
• Networking: 2x Ethernet
• USB: connectivity via integrated USB hub
• Security: Trusted Platform Module (TPM)
• Temperature range: extended temperature range per manufacturer specification

Typical application areas

According to the manufacturer, SMARC modules built on MediaTek Genio processors target industrial IoT applications with edge AI requirements, such as industrial vision and edge AI. Further SOM/CoM modules are listed under System-on-Modules (SOM/CoM).

Note for development

The SOM-SMARC-Genio510 is offered in several configurations differing in RAM, eMMC, Wi-Fi and CAN options; the variant described here, RE58-4AB2-1611-E3, corresponds to the manufacturer-specified 4GB RAM, 16GB eMMC, dual LVDS, 2x Ethernet and USB hub configuration without Wi-Fi/CAN. For datasheets, the hardware manual or sample requests, contact the ATE team.
