Product description

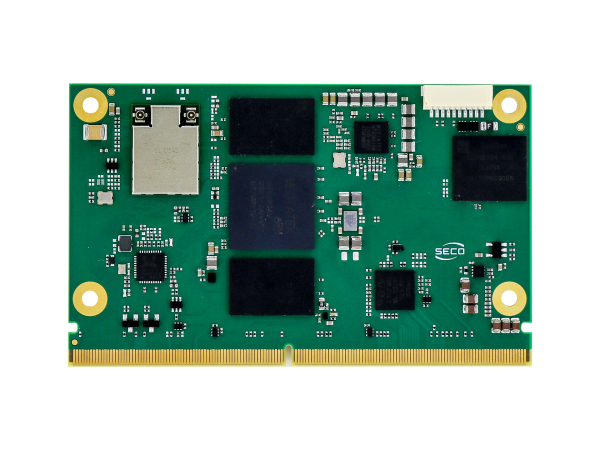

The SOM-SMARC-Genio700 RE58-3EA2-1611-I3 is a SMARC Rel. 2.1.1 Computer-on-Module from Seco built around the MediaTek Genio 700 applications processor, with 8GB LPDDR4X RAM and 32GB eMMC storage for the industrial temperature range.
SOM-SMARC-Genio700 Overview
The module is based on the MediaTek Genio 700 (MT8390) with two Arm Cortex-A78 cores up to 2.2 GHz and six Arm Cortex-A55 cores up to 2.0 GHz, a Mali-G57 MC3 GPU, and an AI accelerator (Cadence Tensilica VP6 with MediaTek APU3.0) for edge AI workloads. The RE58-3EA2-1611-I3 variant belongs to the E58 product family and is rated for the industrial operating temperature range of -40°C to +85°C.
Configuration & Features
- MediaTek Genio 700, 2x Arm Cortex-A78 @ 2.2 GHz, 6x Arm Cortex-A55 @ 2.0 GHz, Mali-G57 MC3 GPU
- 8GB soldered-down LPDDR4X-3733 memory, 32GB eMMC flash storage
- Video: HDMI, DisplayPort and dual-LVDS; resolution up to 4K60 (HDMI/DP) or 2560x1600p60 (LVDS)
- 2x Ethernet via integrated USB hub, 1x USB 3.1, additional USB 2.0 interfaces
- TPM for hardware-based security
- SMARC Rel. 2.1.1 form factor, dimensions 82 x 50 mm
- Operating systems: Linux Yocto Kirkstone and Android T (13)
Typical Applications
The module is suited for industrial edge AI applications, for example in industrial vision and edge AI, and as a base for compact embedded systems in the System-on-Modules (SOM/CoM) category.
Note for Development
According to the manufacturer, operation requires a SMARC 2.1.1 compliant carrier board along with application-specific cooling to keep the heatspreader within the specified temperature range. For design-in support, samples and project pricing, contact our team.
