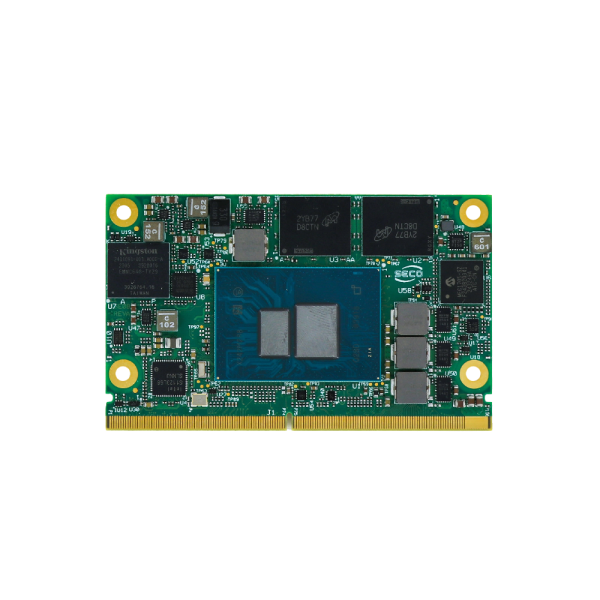

SOM-SMARC-TWL SMARC Module – Seco RE08-E231-1121-C3

The SOM-SMARC-TWL RE08-E231-1121-C3 is a SMARC® Rel. 2.1 compliant computer-on-module from Seco featuring an Intel® Processor N150, 4 GB of LPDDR5 memory and 32 GB of eMMC storage.

SOM-SMARC-TWL Overview

The SOM-SMARC-TWL series is based on Intel processors of the N-series, codenamed Twin Lake, and targets embedded and edge applications with low power requirements. The RE08-E231-1121-C3 variant combines the quad-core Intel® Processor N150 (6 W TDP) with 4 GB single-channel LPDDR5 memory and 32 GB eMMC flash.

Configuration & Features

• Intel® Processor N150, 4 cores @ 0.8 GHz (up to 3.6 GHz Turbo), integrated graphics with 24 Execution Units
• 4 GB LPDDR5-4800 memory, single channel, with IBECC
• 32 GB on-board eMMC flash storage plus one external SATA Gen3.2 channel
• 1x Gigabit Ethernet interface via Intel® i225 controller
• Graphics outputs: eDP 1.3 and 2x DP++ (DisplayPort 1.4 / HDMI 2.1 multimode), resolution up to 4096 x 2160 @ 60 Hz
• 4x PCIe Gen3 lanes (4x1 or 1x2+2x1 configuration), TPM SLB 9670, SPI1 general-purpose SPI
• Operating temperature 0 °C to +60 °C (commercial version), SMARC® Rel. 2.1 form factor, 50 x 82 mm

Typical Applications

SMARC modules of this class are suited to compact edge-computing and automation designs with a constrained power budget. Further System-on-Modules (SOM/CoM) and application examples for industrial vision & edge AI are listed in the respective categories.

Note for Development

Using the SOM-SMARC-TWL requires a SMARC-compatible carrier board per manufacturer specification. For design-in support, datasheets and sample requests, contact the Atlantik Elektronik team.
