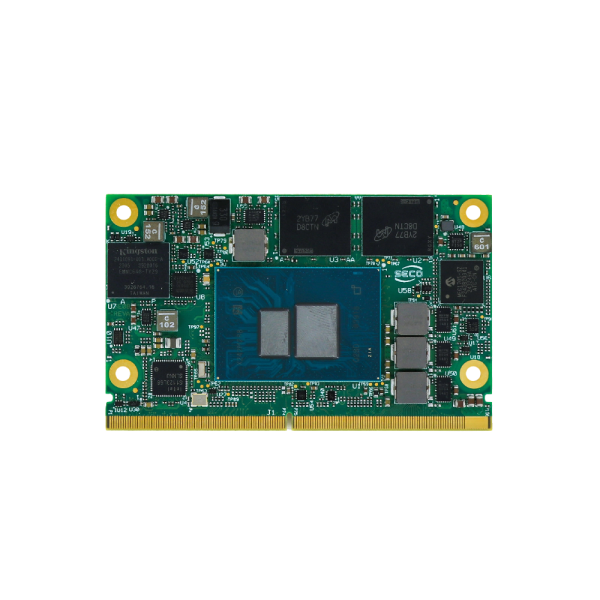

SOM-SMARC-TWL System-on-Module – Seco RE08-F441-2222-C3

The SOM-SMARC-TWL RE08-F441-2222-C3 is a SMARC Rel. 2.1 compliant system-on-module from Seco featuring the Intel Processor N250, 8GB LPDDR5 memory and 64GB eMMC flash storage.

SOM-SMARC-TWL Overview

Seco positions the SOM-SMARC-TWL module series for applications that require dependable performance combined with low power consumption. The Intel® Processor N-series, built on the code-named Twin Lake architecture, is tailored for applications requiring dependable performance and low energy consumption, featuring a thermal design power (TDP) ranging from 6W to 15W. With the new SOM-SMARC-TWL, SECO leverages the Smart Mobility Architecture (SMARC) form factor, known for its compact size and high versatility. The variant described here, RE08-F441-2222-C3, is equipped with the Intel® Processor N250.

Configuration & Features

• Intel® Processor N250, 4 cores, 1.3 GHz (3.8 GHz turbo), 6W TDP, integrated graphics with 32 Execution Units
• 8GB LPDDR5-4800 memory (single channel) with IBECC (in-band error correction code)
• 64GB eMMC 5.1 flash storage on-board, plus 1x external SATA Gen3.2 channel available on the module
• Graphics outputs: LVDS plus 2x DP++ (DisplayPort 1.4 / HDMI 2.1 multimode), resolution up to 4096 x 2160 @ 60 Hz
• 1x Gigabit Ethernet; optional SERDES (SGMII) as an alternative to the fourth PCIe lane
• PCIe Gen3 with up to 4 lanes (1x2+1x1 or 3x1 configuration), TPM SLB 9670 (Q2.0) and eSPI interface
• SMARC Rel. 2.1 form factor, dimensions 50 x 82 mm, commercial operating temperature 0°C to +60°C

Typical Applications

The module suits compact embedded systems with graphics and networking requirements, for example in industrial vision & edge AI. Further SMARC modules and matching accessories are listed under System-on-Modules (SOM/CoM).

Note for Procurement

The RE08-F441-2222-C3 variant is part of the SOM-SMARC-TWL series, which also includes versions with the Intel® Processor N150 and Intel® Core™ i3-N355. For sample requests, variant comparison and project pricing, please contact the ATE sales team.
