PoE+ switch for larger networks and central power distribution
The Teltonika SWM282 is a managed PoE+ switch designed for network infrastructures where data distribution and power delivery need to be combined centrally over Ethernet. With 24 Gigabit PoE+ ports and 4 SFP ports, the device is suitable for larger IIoT, enterprise, and technical networks that need to connect multiple powered endpoints, access points, cameras, or other PoE-capable devices.
High port density with PoE+ and SFP uplinks

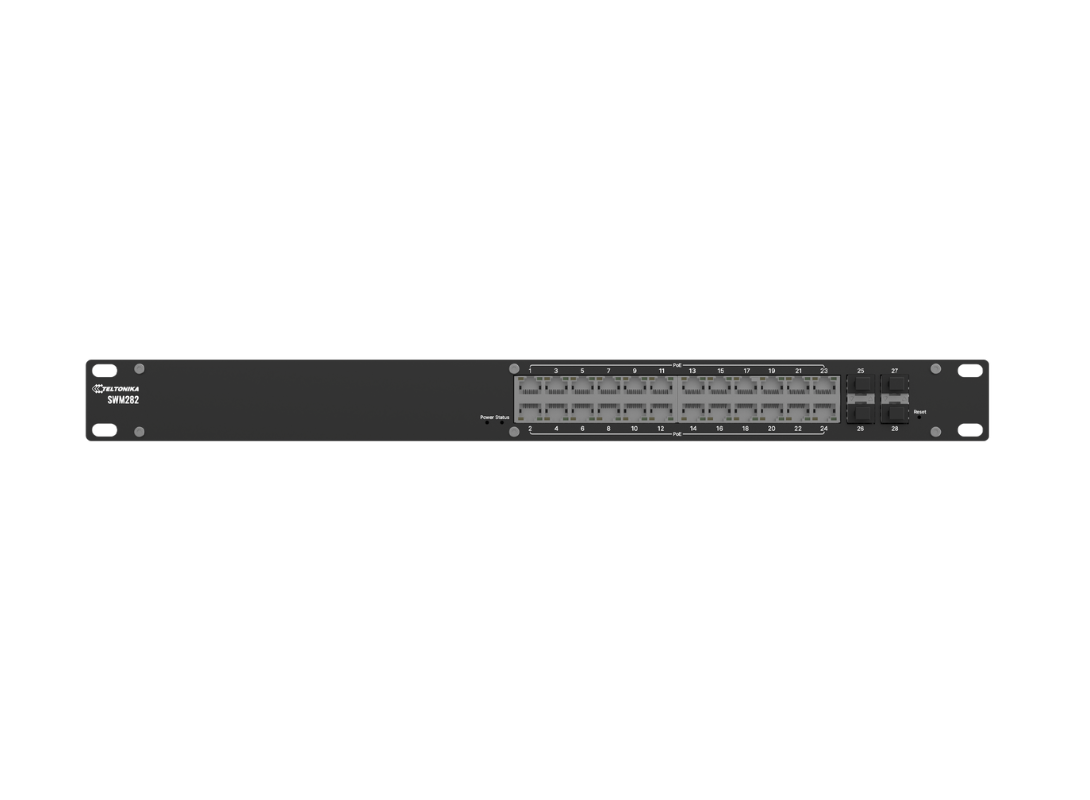

The 24 RJ45 ports support PoE and PoE+ with up to 30 W per port and a total power budget of 300 W. The copper port layout is complemented by four SFP ports for fiber uplinks or backbone connections. This makes the switch suitable for both access-layer deployments and uplink scenarios in structured network environments.
L2+, L3, and segmentation for controlled networks
On the networking side, the SWM282 combines L2+ and L3 features. These include VLAN segmentation, STP/RSTP, port aggregation through LACP, IGMP snooping, QoS, bandwidth control, and static IPv4 and IPv6 routing. Dynamic routing protocols such as BGP, OSPF v2, RIP v1/v2, and EIGRP are also supported. This makes the switch suitable for environments that require network segmentation, traffic prioritization, and controlled forwarding behavior.
Designed for industrial and mixed network environments
In addition to standard switching functions, the device supports Profinet, MRP, and EtherNet/IP. This is especially relevant for mixed networks where industrial communication and conventional IT infrastructure need to operate together. Depending on the order code, a version with Profinet Class B conformance is also available.
Management and rack-based deployment

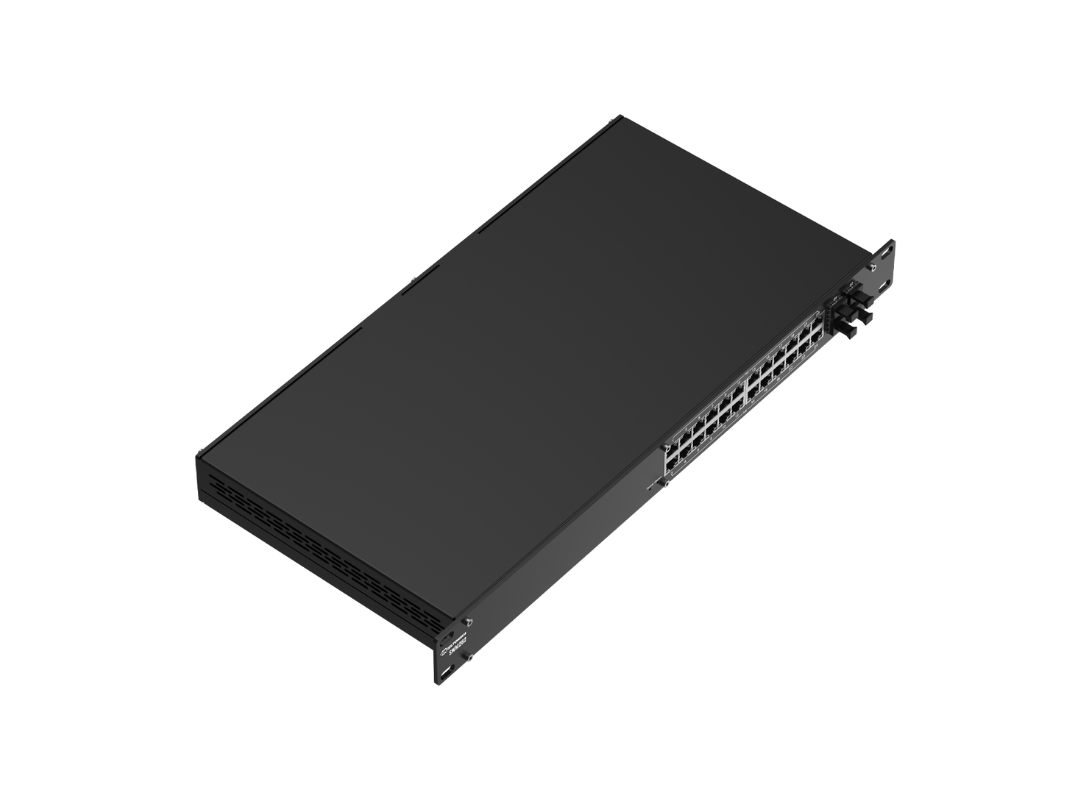

The SWM282 runs on SwmOS and supports Web UI, FOTA, RMS, and configuration profiles. Two years of RMS Management are included. The device is built in a 19-inch rack format, uses an anodized aluminium housing, and is installed with a rack mounting kit. This makes it suitable for central deployments in technical rooms, distribution cabinets, and rack-based network installations.
Application Areas
- Larger IIoT and enterprise networks with centralized PoE distribution across 24 powered endpoints.
- Network installations that require fiber uplinks via 4 SFP ports.
- Industrial and mixed environments with Profinet, MRP, and EtherNet/IP requirements.
- Rack-based network distribution in technical rooms, cabinets, and central infrastructure areas.
- Segmented networks using VLAN, QoS, static routing, and dynamic routing protocols.
- Central switch infrastructures with RMS-based remote management and configuration control.
- Manufacturer: Teltonika Networks
- Product: SWM282
- Product type: PoE+ managed switch
- Ethernet ports: 24x RJ45, 10/100/1000 Mbps
- SFP ports: 4x SFP
- PoE+ ports: ports 1-24
- PoE standards: IEEE 802.3af (PoE, Type 1), IEEE 802.3at (PoE+, Type 2), Alternative A
- Max. PoE power per port: 30 W
- Total PoE power budget: 300 W
- IEEE 802.3 standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- Network management: 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
- Routing: BGP, OSPF v2, RIP v1/v2, EIGRP
- L3 features: static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
- L2 features: loop protection, forwarding table, VLAN, STP/RSTP
- Port aggregation: 802.3ad (LACP)
- MRP: MRP client role, MRP manager role
- DHCP: DHCP server, DHCP client, DHCP static leases with MAC wildcards
- Multicast: IGMP snooping, multicast querier support
- QoS: port priority, DSCP priority, 802.1p priority, TOS
- Scheduling: SP / WFQ / WRR
- Bandwidth control: rate limiting, storm control
- Traffic shaper: port-based shaping
- Diagnostics: cable diagnostic, ping, traceroute, nslookup
- Ping reboot: capability to restart PoE on a specific port
- Industrial protocols: Profinet, EtherNet/IP, SNMP v2/v3, LLDP
- Profinet: Profinet Class B conformance optional by order code
- Security: PAM, preshared key, Radius, TACACS+, IP and login blocking, VLAN, 802.1x, MAC filtering
- API: Teltonika Networks Web API (beta)
- Operating system: SwmOS (OpenWrt-based)
- CPU: Realtek, 500 MHz, MIPS-4KEc
- RAM: 128 MB DDR3
- Flash: 16 MB serial flash
- Switching bandwidth: 56 Gbps non-blocking
- Forwarding rate: 83.33 Mpps
- Packet buffer: 512 KB
- MAC address table: 8K entries
- Jumbo frames: up to 10000 bytes
- Management: Web UI, FOTA, RMS, configuration profiles, backup, factory reset
- RMS: 2 years of RMS Management included

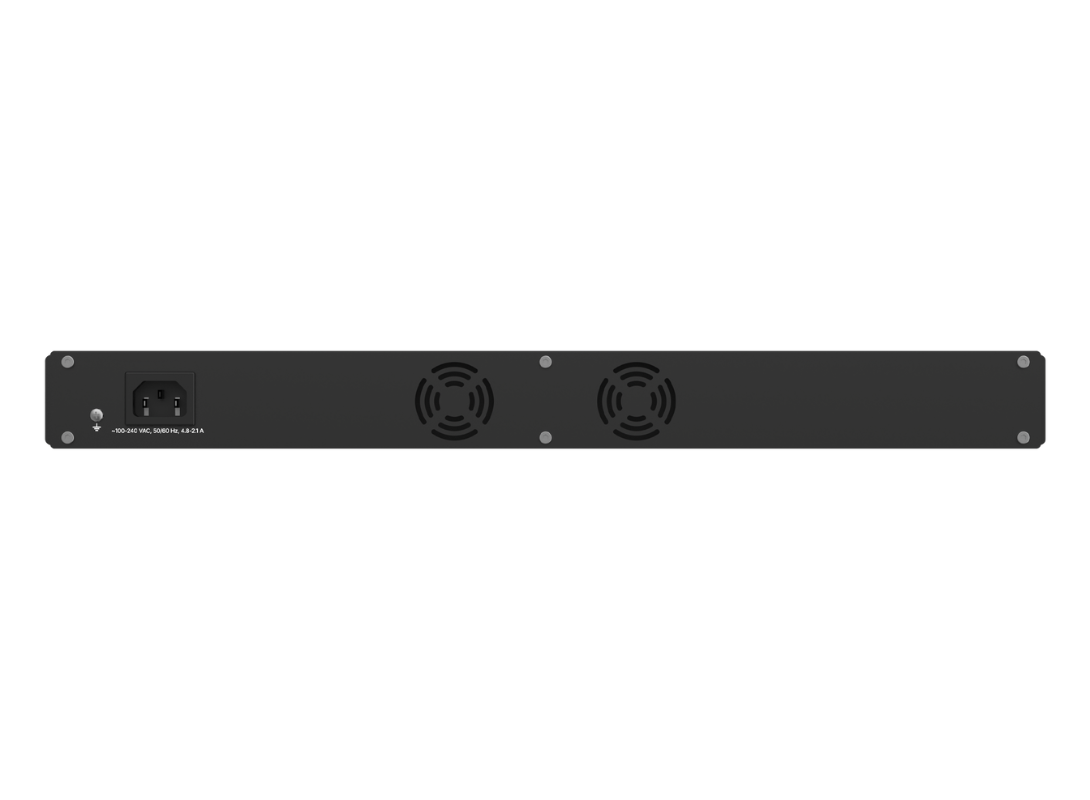

- Power connector: C14 connector
- Input voltage range: 100-240 VAC, 50/60 Hz
- Power consumption: idle 9 W / max 330 W / PoE max 300 W
- Status LEDs: 1x power LED, 48x ETH status LEDs, 1x status LED, 4x SFP status LEDs
- Other interfaces: 1x grounding screw, software reset button
- Housing: anodized aluminium housing
- Dimensions: 483 x 44 x 234 mm
- Weight: 2291 g
- Mounting: rack mounting kit
- Operating temperature: 0 °C to 50 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress protection: IP30
- Approvals: CE, UKCA, CB, RCM, FCC, IC
- Available versions: standard version without Profinet Class B conformance or version with Profinet Class B conformance
- Standard package: SWM282, quick start guide
- HS Code: 851762
- HTS: 8517.62.00
FAQ
How many PoE ports does the SWM282 provide?
The switch provides 24 PoE+ capable Gigabit RJ45 ports and an additional 4 SFP ports for uplink or fiber connectivity.
What is the PoE budget of the SWM282?
The total PoE power budget is 300 W. Each PoE port can deliver up to 30 W.
Which network functions are supported?
The SWM282 supports VLAN, STP/RSTP, LACP, QoS, IGMP snooping, static IPv4/IPv6 routing, and dynamic routing protocols such as BGP, OSPF v2, RIP v1/v2, and EIGRP.
Is the SWM282 suitable for industrial networks?
Yes. The switch supports Profinet, MRP, and EtherNet/IP, making it suitable for mixed industrial and conventional network environments.
Can the SWM282 be managed remotely?
Yes. The device supports RMS and includes 2 years of RMS Management.
Which mounting method is intended for the switch?
The SWM282 is designed for rack installation and is deployed with a rack mounting kit.
